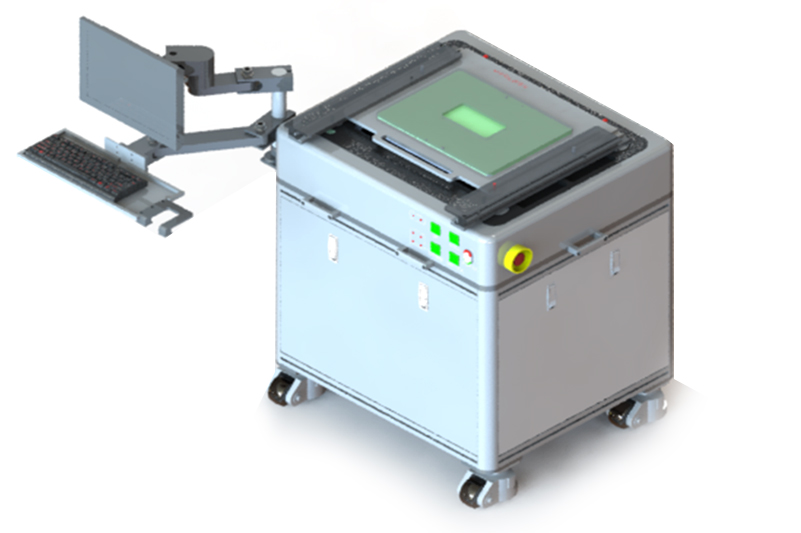

OS Tester
SW에서 전달되는 프로토콜에 따라 각 릴레이를 제어하는 FW개발
| Size | 820(W) X 715(L) X 1,000-1120(H) |
|---|---|
| Test Site | 1, 2, 4, 8, 16, 32para |
| Test Items | Open/Short, Daisy Chain, CRES, RLC (Option) |
| Test Time | 0.5ms/Per pin |
| Test Channel | 4,800pin |
| Test Method | ISVM, VSIM |
| Voltage Range | -10V ≤ V ≤ +10V |
| FI Range | -80mA ≤ I ≤ +80mA |
| Current Range | ±5uA, ±20uA, ±200uA, ±2mA, ±80mA |
| Resolution | 16 bit |
